DOOR CONTROLLER 2 DOOR/ASC3202B DAHUA
Access Controller > Built-in Web server, features main and sub control modes. > The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms. > Supports 1000 users (main control mode), 3000 fingerprints, 5000 Bluetooth cards (main control mode) and 300,000 records. > Accesses card readers through Wiegand and RS-485 protocols. > Supports TCP and IP connection, and standard PoE. > Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA. > Supports configuring the hardware I/O port and exporting configuration diagrams. > Retains stored data even while powered off. > Role management. > Supports multiple advanced access control functions, such as first-person unlock, multi-person unlock, global anti-passback, global multi-door interlock and global external alarm.

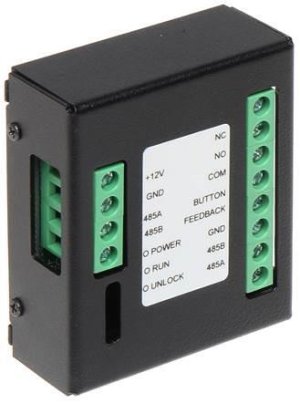

DOOR CONTROLLER MODULE EXT./DEE1010B-S2 DAHUA
Access Control Extension Module > Used to expand access control functions by working with access control terminal and door station. > Supports RS-485 communication. > Connects to electronic or magnetic locks to bolster security. > Offers 3 indicators to indicate when the device is on or off, functioning, and the status of the door. Power: DC12V ±10% Operating temperature: -10°C~+60°C
CARD READER MIFARE 13.56MHZ/ASR1100B-V1 DAHUA
Dahua Card Swiping Access Reader >Supports unlock through card for ease of use. >Contactless card reading. Supports reading Mifare cards (IC card). >Reads card at a 13.56 MHz frequency. >Supports RS-485 and Wiegand communication. >The Wiegand port supports W34 protocol and other custom protocols for compatability with third-party products. >The device can be updated through the webpage. >Triggers sound alarms and the indicator light. >All the ports come with overcurrent and overvoltage protection. >Cables can be installed on surfaces, and the internal segment of the device has a sealant treatment. >IP67 rated (silicon surface treatment needed). The device is suitable for outdoor scenes.
CODE LOCK SMART/ASI1201E-D-V1 DAHUA
Dahua ID Card Access Standalone > Made from PC materials and composite panels. > Supports 30,000 users, 30,000 passwords, 30,000 cards, and 60,000 records. > Offers multiple unlock methods including card and password. You can also combine them to create your own personal unlock methods. > Provides touch keypad with backlighting. > Contactless card reading for ID cards (125 KHz, EM-Marine RFID). > Supports RS-485 communication and Wiegand communication. > Buzzer and indicator light. > Tamper alarm. > Controller mode and card reader mode. > Offers multiple types of alarms such as duress, intrusion, unlock timeout, and excessive use of illegal card. > Cards can be issued to many types of users such as normal, VIP, patrol, guest, and blocklist users. > Supplies power to 1 lock (12 V, 1 A or lower) or 1 card reader (12 V, 200 mA or lower). > Online update. > TCP/IP connection and auto registration. > IP66 rated. > Ideal for use outdoors. > Surface mount. > Compatible with the platforms of SmartPSS Lite and DSS Pro.
CARD READER MIFARE EM-MARIN/ASR2101A-ME DAHUA
> PC material, acrylic panel and IP66, suitable for indoor and outdoor use > Support contactless recognition of IC card (Mifare card) and 125KHz (EM-ID) card in two frequencies > Support card/password unlock > Support RS485 and Wiegand communication > Support buzzer and indicator prompt > Support anti-tampering alarm > The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment > All connection ports have overcurrent and overvoltage protection
CARD READER MIFARE WIEGAND/ASR2100A DAHUA
> PC material, acrylic panel and IP66, suitable for indoor and outdoor use > Support contactless recognition of IC card (Mifare card) > Support card unlock > Support RS485 and Wiegand communication > Support buzzer and indicator prompt > Support anti-tampering alarm > The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment > All connection ports have overcurrent and overvoltage protection
DOOR CONTROLLER 2 DOOR/ASC2202B-S DAHUA
Access Controller > Support TCP/IP communication > Two dual communication protocols: RS-485 and Wiegand (W26 and W34) > Holds 100,000 users and stores 500,000 card swiping records > Support interlock, group combination, anti-passback, remote unlock, and more > Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal card exceeding threshold alarm, and incorrect password alarm > Built-in RTC, support manual time synchronization and auto time synchronization > Support power-off memory protection and online upgrade > Support watchdog (a device that protects a system from software or hardware failures) > Support PoE power supply
DOOR CONTROLLER 4 DOOR/ASC2204B-S DAHUA
Access Controller > Support TCP/IP communication > Two dual communication protocols: RS-485 and Wiegand (W26 and W34) > Holds 100,000 users and stores 500,000 card swiping records > Support interlock, group combination, anti-passback, remote unlock, and more > Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal card exceeding threshold alarm, and incorrect password alarm > Built-in RTC, support manual time synchronization and auto time synchronization > Support power-off memory protection and online upgrade > Support watchdog (a device that protects a system from software or hardware failures) > Support PoE power supply
